Attachments
Overview¶
In the "Editor", you can use the "Attachment" items of "AttachmentsA" to "AttachmentsZ." The "Attachment" item can be used as input item that allow you to upload/download "Attachment."
Limitations¶
- In the "Community Edition", you cannot place more than 27 "Attachment" items.
- In "Pleasanter.net", you cannot place more than 27 "Attachment" items.
Prerequisites¶
- "Site Administration Permission" is required to configure settings.
Advanced Settings¶
For advanced settings, refer to "Input Column Advanced Settings."
UseStorageSelect in BinaryStorage.json is false (Default State)¶
| Setting item name | Default value | Description |
|---|---|---|
| Name displayed | AttachmentsA - AttachmentsZ | Set the "Name Displayed." |
| Text alignment | Left alignment | Set the "Text Alignment." |
| Required | Unchecked | Set the "Required." |
| Read only | Unchecked | Set the "Read Only." |
| Allow attachments to be deleted | Checked | Set the "Allow Delete Attachment." |
| Do not delete files that exist in history | Unchecked | Set the "Do Not Delete Files in History." |
| Overwrite the file with the same name | Unchecked | Set the "Overwrite File with Same Name." |
| File quantity limit | 30 | Set the "File Quantity Limit." |
| Size limit (MB) | 50 | Set the "Size Limit." This is displayed when the "Storage Destination" of the corresponding "Attachment Column" is "Database" or "Automatic (Database or Local Folder)." |
| Total size limit (MB) | 1024 | Set the "Total Size Limit." This is displayed when the "Storage Destination" of the corresponding "Attachment Column" is "Database" or "Automatic (Database or Local Folder)." |
| Description | (Blank) | Set the string ("Description") to display in the item's "Tooltip." |
| Input guide | (Blank) | Set the "Input Guide." If a value is set, the value set will be displayed in the "Drag and Drop Files" section of the file attachment area. |
| Auto post back | Unchecked | Set the "Auto Postback." |
| No wrap | Unchecked | Set the "No Wrap." |
| Hide | Unchecked | Set the "Hide." |
| Field css | (Blank) | Set the "Field CSS." |
| Control css | (Blank) | Set the "Control CSS." |
| Fulltext types | Name Displayed | Set the "Fulltext Types." |
By setting "UseStorageSelect" in BinaryStorage.json to true, you can configure the "Storage."
UseStorageSelect in BinaryStorage.json is true
and Select "Database" for Storage¶
| Setting item name | Default value | Description |
|---|---|---|
| Size limit (MB) | 50 | Set the "Size Limit." |
| Total size limit (MB) | 1024 | Set the "Total Size Limit." |
UseStorageSelect in BinaryStorage.json is true
and Select "Local folder" for Storage¶
| Setting item name | Default value | Description |
|---|---|---|
| Local folder size limit (MB) | 3072 | Set the "Local Folder Size Limit." |
| Local folder total size limit (MB) | 30720 | Set the "Local Folder Size Limit." |

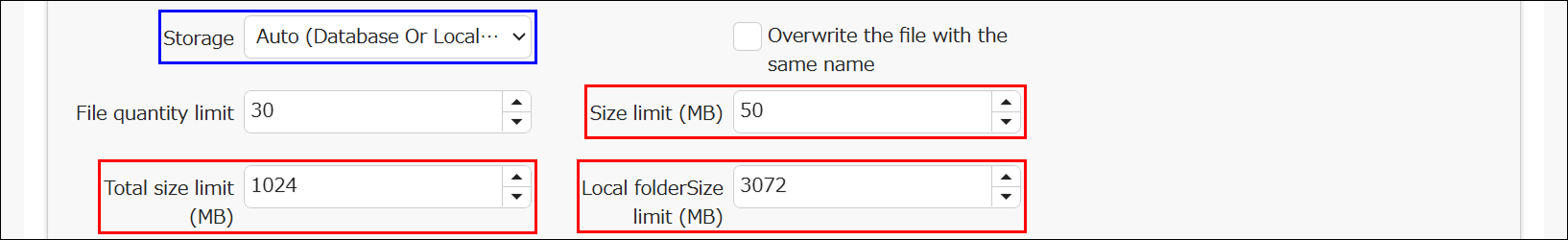

UseStorageSelect in BinaryStorage.json is true
and Select "Auto (Database Or Local folder)" for Storage¶
| Setting item name | Default value | Description |
|---|---|---|
| Size limit (MB) | 50 | Set the "Size Limit." |
| Total size limit (MB) | 1024 | Set the "Total Size Limit." |
| Local folder size limit (MB) | 3072 | Set the "Local Folder Size Limit." |
Related Information¶
- Manage Table: Editor
- Table Function: Download Record Attachments
- Manage Table: Editor: Column Advanced Settings
- Manage Table: Editor: Column Advanced Settings: Name Displayed
- Manage Table: Editor: Column Advanced Settings: Alignment
- Manage Table: Editor: Column Advanced Settings: Input Required
- Manage Table: Editor: Column Advanced Settings: Read-only
- Manage Table: Editor: Column Advanced Settings: Allow Delete Attachment
- Manage Table: Editor: Column Advanced Settings: Do Not Delete Files in History
- Manage Table: Editor: Column Advanced Settings: Overwrite File with Same Name
- Manage Table: Editor: Column Advanced Settings: File Quantity Limit
- Manage Table: Editor: Column Advanced Settings: Size Limit (MB)
- Manage Table: Editor: Column Advanced Settings: Storage Destination
- Manage Table: Editor: Column Advanced Settings: Total Size Limit (MB)
- Manage Table: Editor: Column Advanced Settings: Description
- Common Function: Tooltip Display When Selecting User Or Group
- Manage Table: Editor: Column Advanced Settings: No Wraparound
- Manage Table: Editor: Column Advanced Settings: Hidden
- Manage Table: Editor: Column Advanced Settings: Field CSS
- Manage Table: Editor: Column Advanced Settings: Control CSS
- Manage Table: Editor: Column Advanced Settings: Fulltext Types
- Set Parameter: BinaryStorage.json
- Manage Table: Editor: Column Advanced Settings: Local Folder Size Limit (MB)
- Manage Table: Items: Class
- Manage Table: Items: Numeric Value
- Manage Table: Items: Date
- Manage Table: Items: Check
- Manage Table: Items: Description
- Contact
In Case There Are Not Enough items¶
If 26 items from A to Z such as "Class items", "Numeric value items", "Date items", "Check items", "Description items" are not enough, the number of items can be expanded to 27 or more by using the "Enterprise Edition". For more information on the "Enterprise Edition", please refer to "Here" (Japanese text only). For information on how to obtain a trial version of the "Enterprise Edition", please contact us at "Contact" (Japanese text only).
