Editor: Column: Numeric Value
Overview¶

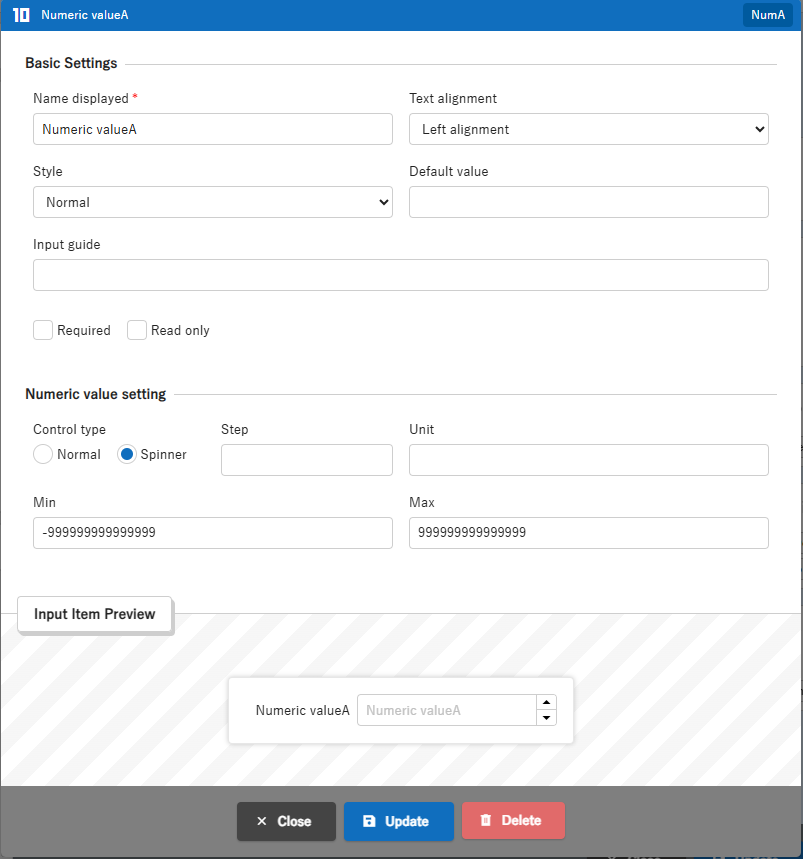

This article explains the column editing dialog for "Numeric Value" in "Smart Design". For details on "Numeric Value Column", please refer to the following page.
Manage Table: Items: Numeric Value
Settings¶
| Column | Summary | Notes |
|---|---|---|
| Name Displayed | Set the string to be displayed as the label of the column | For details, see Manage Table: Editor: Column Advanced Settings: Name Displayed |
| Text Alignment | Set the horizontal alignment (left or right) of the column body | For details, see Manage Table: Editor: Column Advanced Settings: Alignment |
| Style | Set the style of the input column (normal, wide) | For details, see Manage Table: Editor: Column Advanced Settings: Input Column Style |
| Default Value | Set the default value of the "Input column" when "Create new" a record. " | For details, see Manage Table: Editor: Column Advanced Settings: Default Value |
| Input guide | Set the input guide for text input column | For details, see Manage Table: Editor: Column Advanced Settings: Input Guide |
| Required | Set this when you want the "Input column" to be "Required" in the Editor | For details, see Manage Table: Editor: Column Advanced Settings: Input Required |
| Read only | Set the "Input column" to "Read only" in the Editor | For details, see Manage Table: Editor: Column Advanced Settings: Read-only |
| Control type | Set the control type for the numeric value column on the editor | For details, see Manage Table: Editor: Column Advanced Settings: Control Type (Numerical Value) |
| Step | Set the "Step" when using "Spinner" as the control type | For details, see Manage Table: Editor: Column Advanced Settings: Min, Max, Step |
| Unit | Set the string you want to display with a unit for the numeric value column | For details, see Manage Table: Editor: Column Advanced Settings: Unit |
| Min | If you want to limit the minimum and maximum values of the numeric value column | For details, see Manage Table: Editor: Column Advanced Settings: Min, Max, Step |
| Max | If you want to limit the minimum and maximum values of the numeric value column | For details, see Manage Table: Editor: Column Advanced Settings: Min, Max, Step |
About deletion¶
Please note that if you delete a numeric value column card from the layout, the changed settings will be reset.
Supported Versions¶
| Supported versions | Body |
|---|---|
| 1.4.15.0 and later | Added function |
