Filter: How to Use

Overview¶

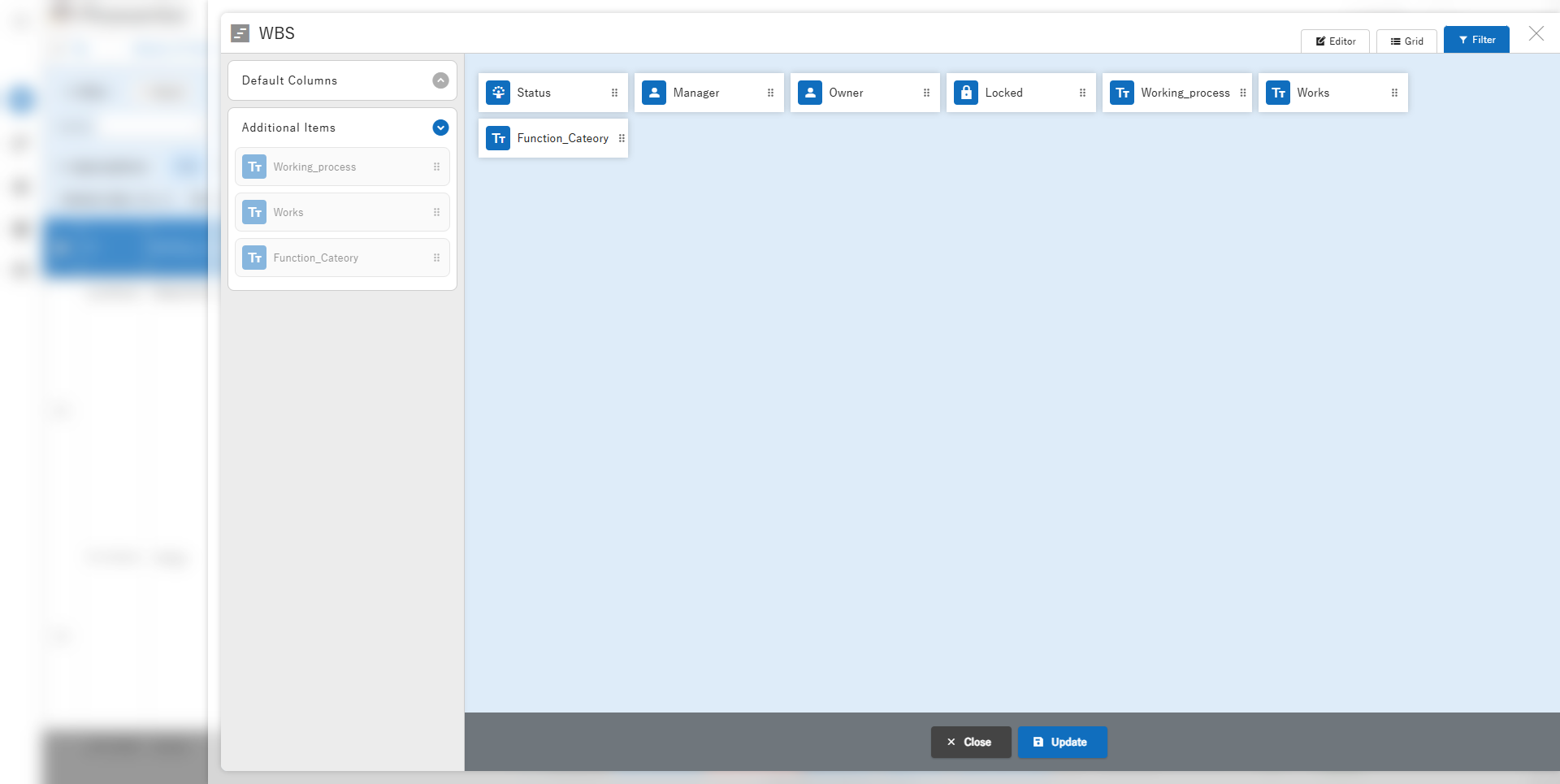

In "Smart Design", you can easily edit the layout of the "Filter" by dragging and dropping.
You can also change the display options for each column individually in the dialog.

Limitations¶

1. Only the column enabled in [General] can be edited on the Smart Design Filter screen. Columns enabled in Added tabs cannot be added.
2. The linked column cannot be edited on the Smart Design filter screen. They will not be displayed on Smart Design, but the settings will be retained, and only the arrangement of the column displayed in the filter will be changed.
3. Please also refer to the limitation in "Smart Design: Overview".

Screen Description¶

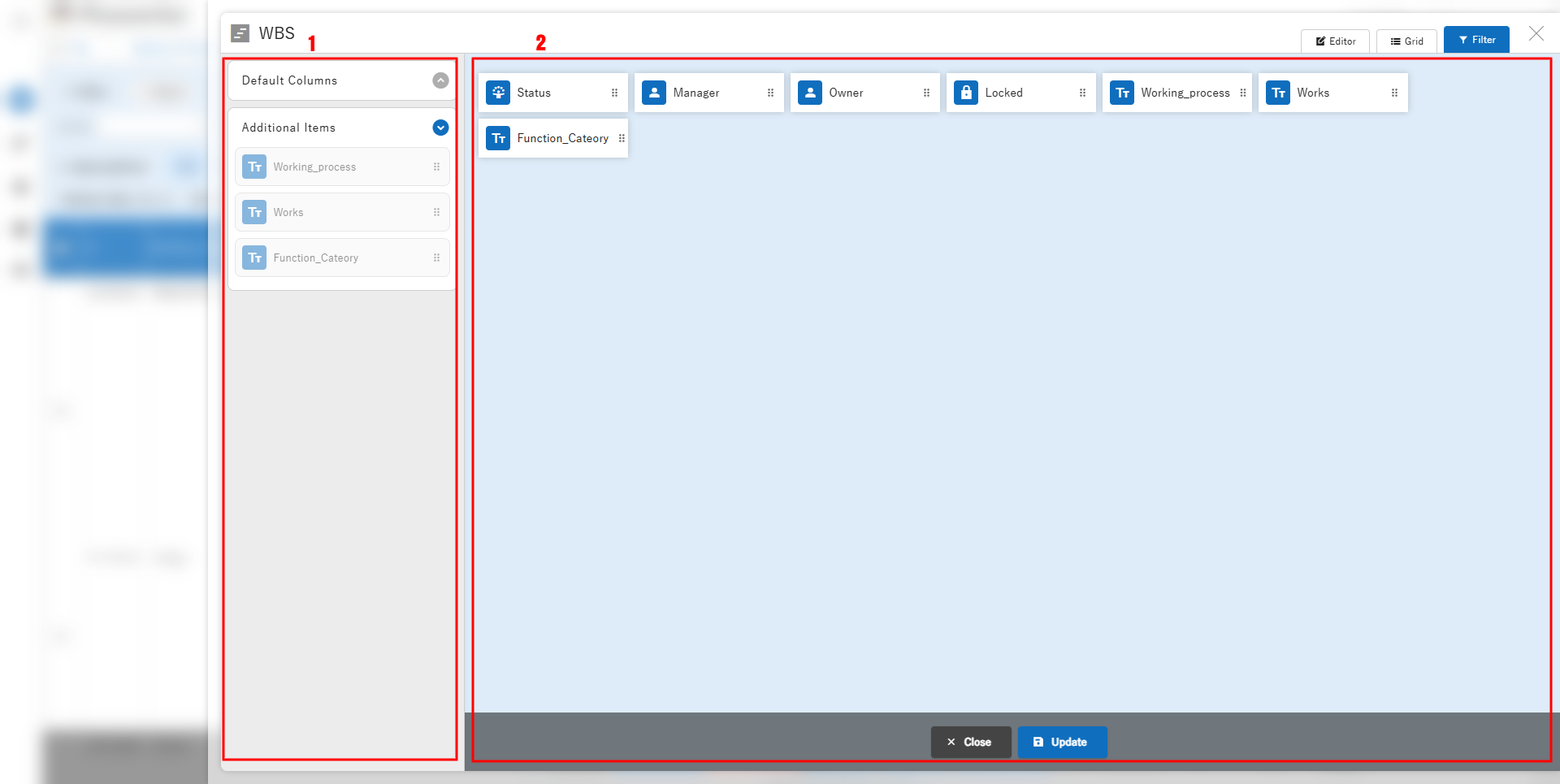

Draggable area¶

1. Column index¶

You can place a column on the filter by selecting it on the left side of the screen and dragging and dropping it to the layout area on the right.
The column group name is an accordion button, and by expanding it, the columns that can be placed will be expanded.
Details of each group are as follows.

2. Layout area¶

Columns placed in the filter on the right side of the screen are laid out in card-shaped units.
Placed column cards can be freely rearranged by dragging and dropping.

Various column cards¶

Operation Procedure¶

Placing and sorting columns¶

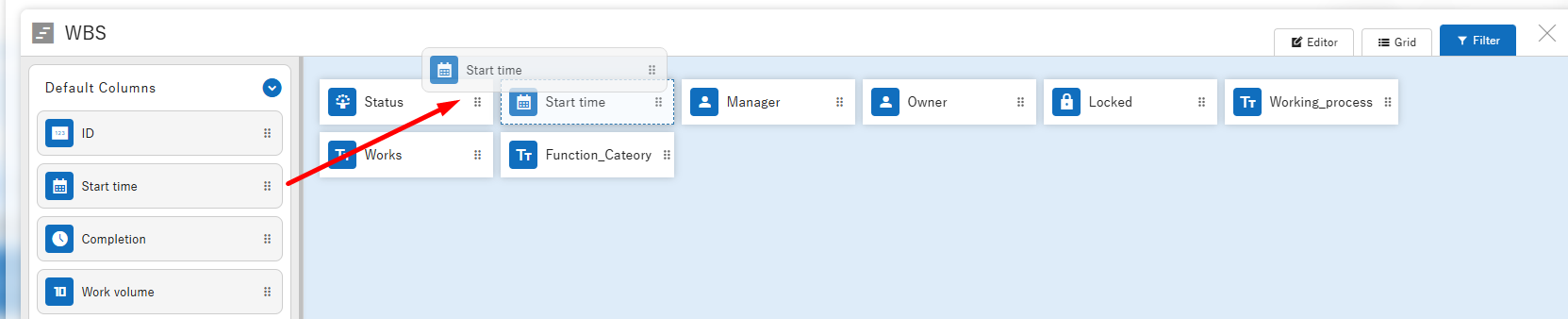

When Smart Design is launched, the current configuration of Manage Table > "Filter" is displayed.

You can place the necessary columns on the filter by dropping them from the column index on the left side of the screen, and you can freely rearrange the columns already placed, so you can intuitively design the filter layout.

Delete a column from the layout¶

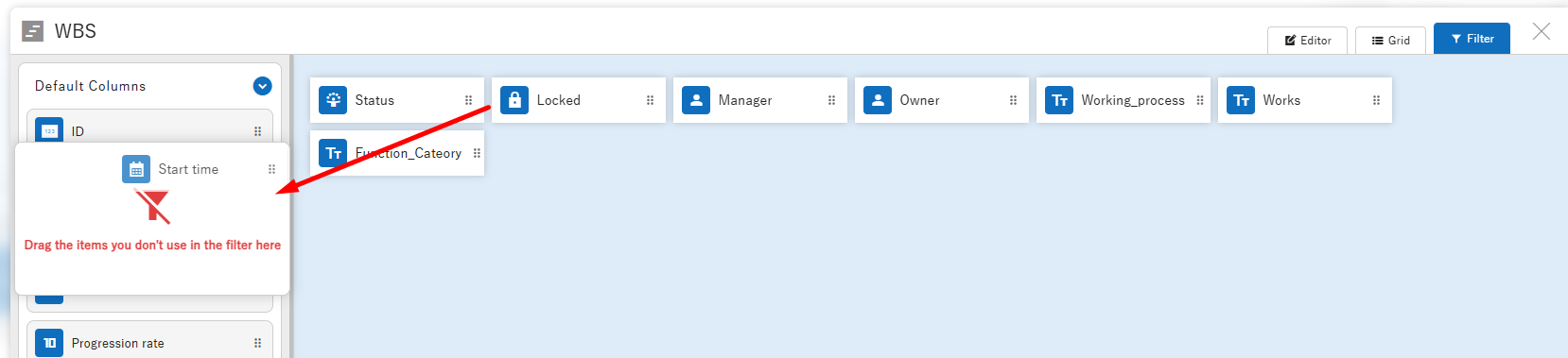

If you want to delete a column card from the layout, drag the column you want to delete to "Drag columns you don't want to use in the filter here" in the column index.
* Release the column after making sure that the text "Drag columns you don't want to use in the filter here" turns red.
